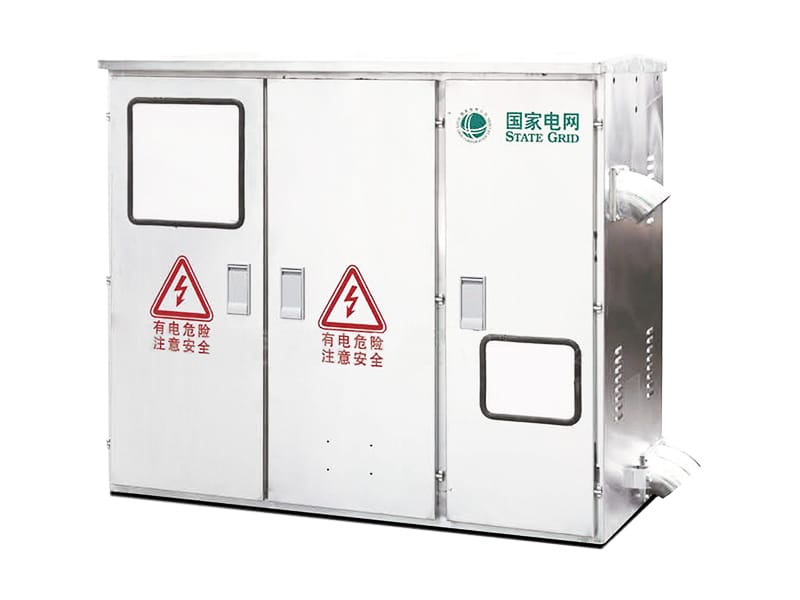

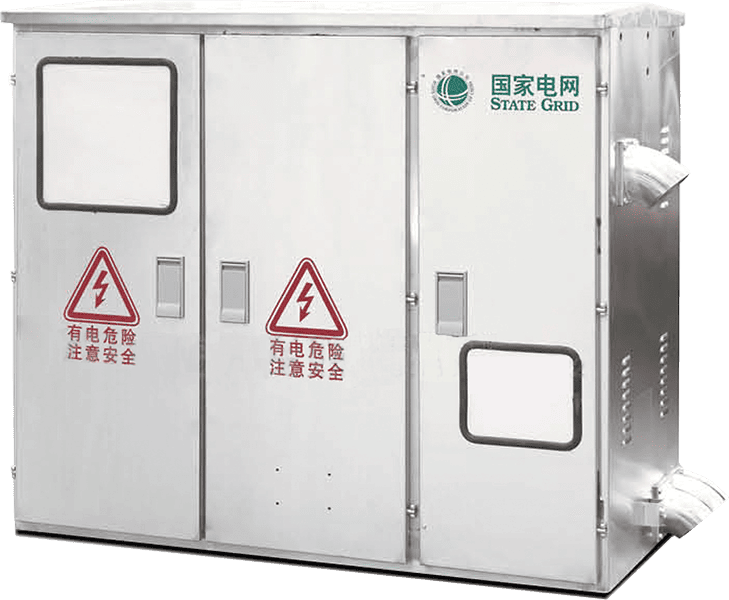

The low voltage integrated distribution box is a distribution device suitable for three-phase AC 50HZ, rated voltage 0.4KV power applications. It provides real-time monitoring and analysis for distribution transformer operation data and a fault protection system in order to prevent transformer district line loss. The distribution device also features a comprehensive meter reading system, automatic compensator for reactive power and wireless data transmission.

The integrated distribution box completes automatic management for distribution networks using economic, safe, and reliable running schemes, laying a good foundation for the formation of a properly running and highly efficient power grid and for the deployment of an integrated automatic power system. This improves the service quality of the power distribution system and minimizes external management input investment of power supply enterprises.

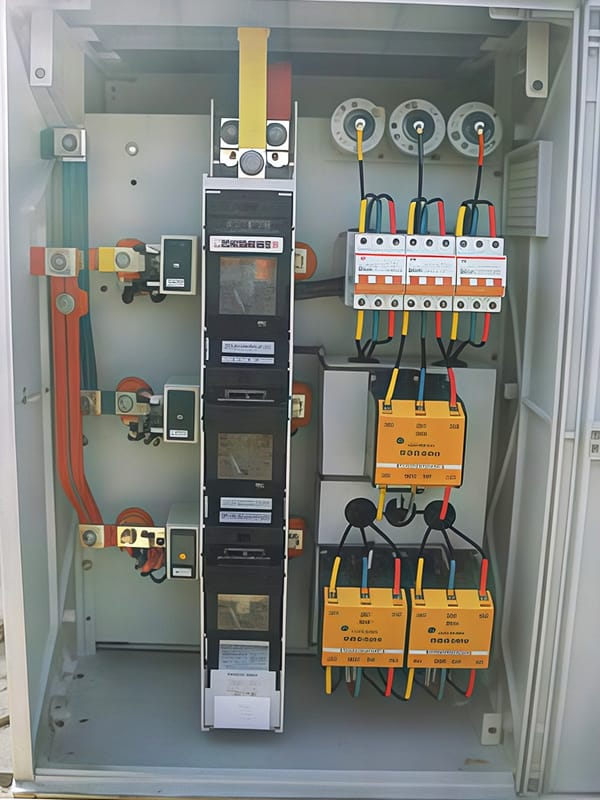

The low voltage integrated distribution board is a device used for power distribution, monitoring, and control in power systems, typically used in industrial, commercial, and residential buildings. Low voltage integrated distribution boxes commonly include components such as incoming switches, circuit breakers, fuses, current transformers, energy meters, controllers, and relays.

Request a Quote

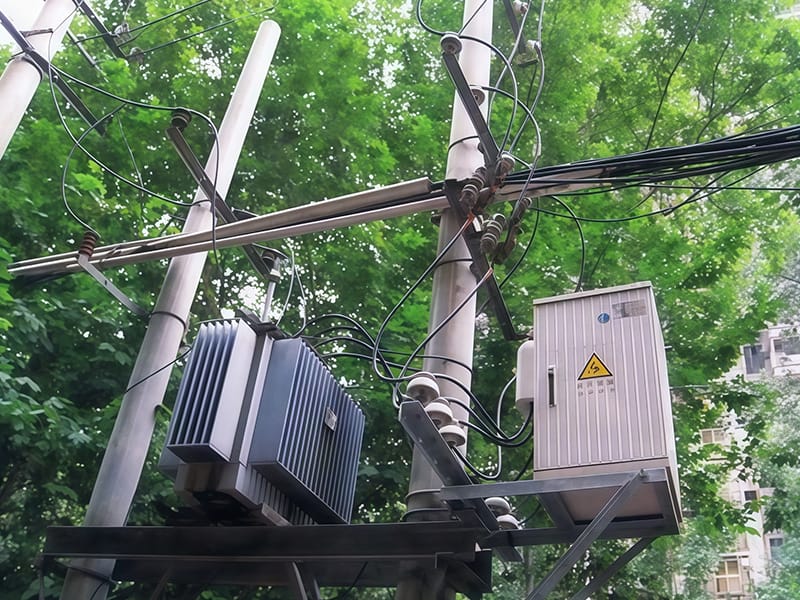

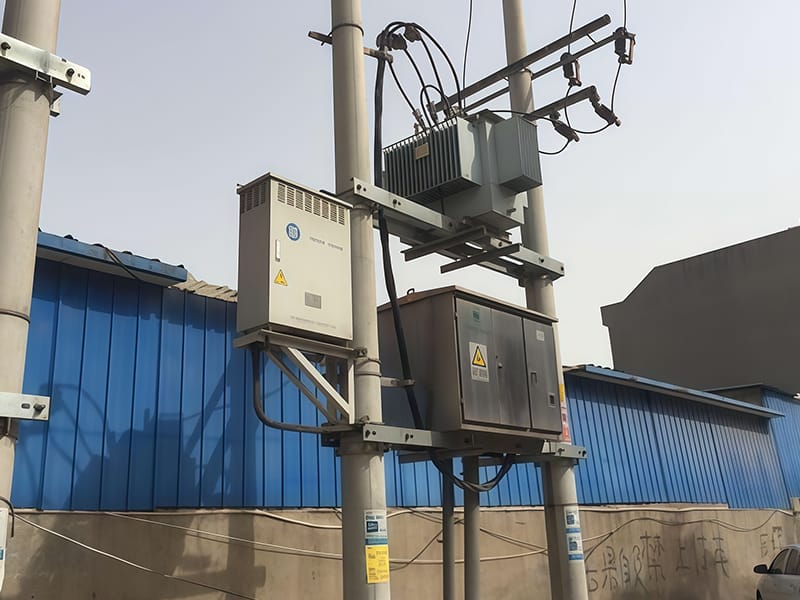

Application

The low voltage integrated distribution box can carry out automatic tracking and compensating for low-voltage power distribution transformers and all kinds of electric power user overloading operations by increasing the distribution capacity to 15%-30%. Meanwhile, the box will reduce potential damage caused by overloading by 25%-50%. The box improves the quality of voltage, reduces the power consumption, and makes full use of electrical energy. The box is widely used in city and rural power grid construction and renovation projects.

Features

Flexibility: The configuration of the distribution box can be customized according to actual needs, meeting the power distribution requirements of different places and demands.

Safety: The distribution box has good protective performance to ensure the safety of equipment and personnel. It also has overload protection and short-circuit protection functions, improving the safety performance of the equipment.

Maintainability: The internal structure of the distribution box is reasonably designed with a clear layout, making it easy to maintain and manage, reducing maintenance and repair costs and workload.

Technical Specifications

Rated insulating voltage	660V
The rated power-frequency voltage	The main circuit 380V auxiliary loop 380V, 22V
Rated frequency	50Hz
Rated current	100A-630A
Main busbar rated current	100A-630A
Busbar rated short-time withstand current	50KA
Capacity of comprehensive meter-reading system	1340 pcs single table
Upper communication mode	Telephone line communication mode (baud rate 2400BPS) Asynchronous duplex serial direct connection communication (baud rate 9600BPS) Infrared communication (baud rate 2400BPS)
Measuring accuracy	Voltage 0.5 grade Current 0.5 grade Active power 1 grade Reactive power 1 grade Active energy 1 grade Reactive energy 2 grade
Remote control output	Supplying 5VDC or 12VDC low-level (or naming 5VDC or 12VDC common anode) output. Each line maximum allowed current 0.5A, total 12 lines output the maximum allowed current is 0.5A when 12VDC, and 1A when 5VDC
Communication port	RS-232: transmission rate 1200-19200bps RS-485: transmission rate 1200-19200bps GPRS: built-in
Communication protocol	DL/T 634-51011997 DL/T 634-51012002 DL/T 645-1997

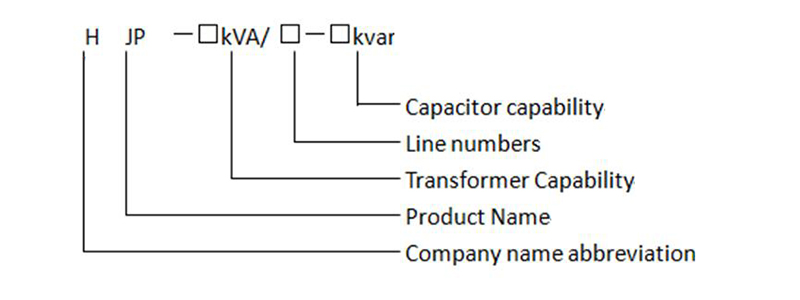

Type and significance of the Integrated Distribution Box

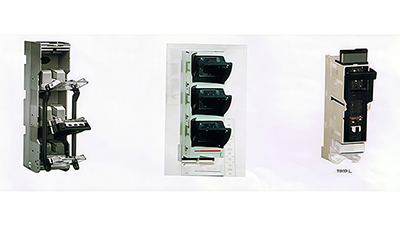

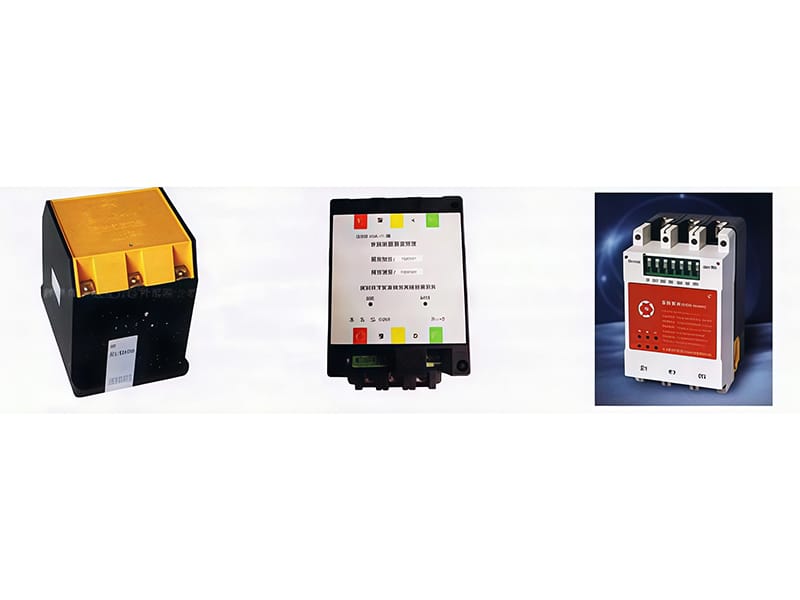

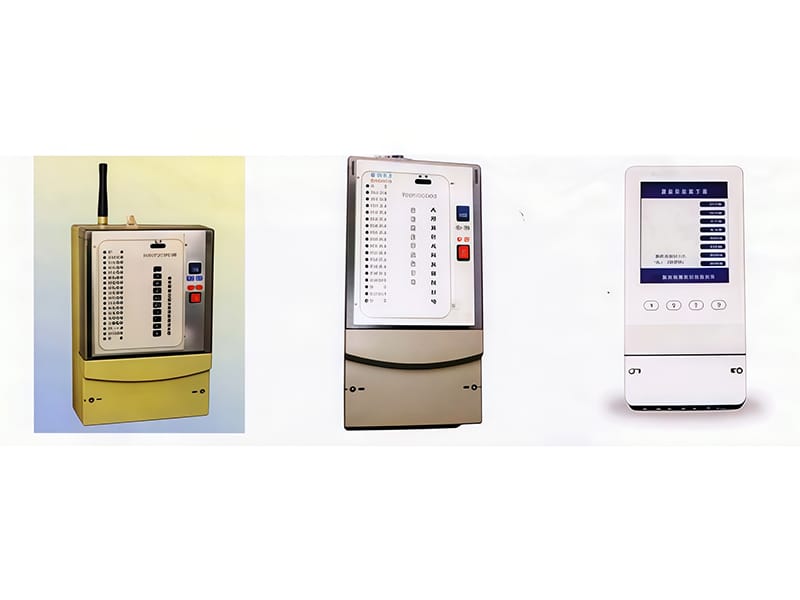

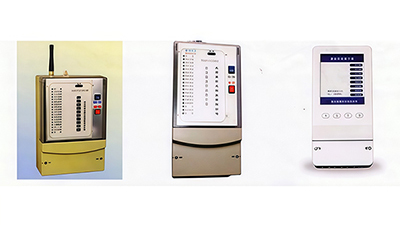

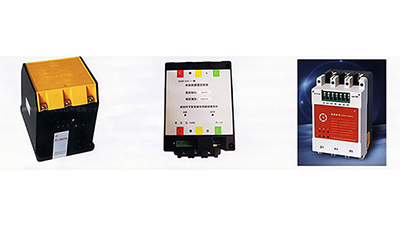

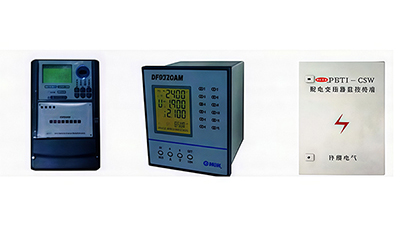

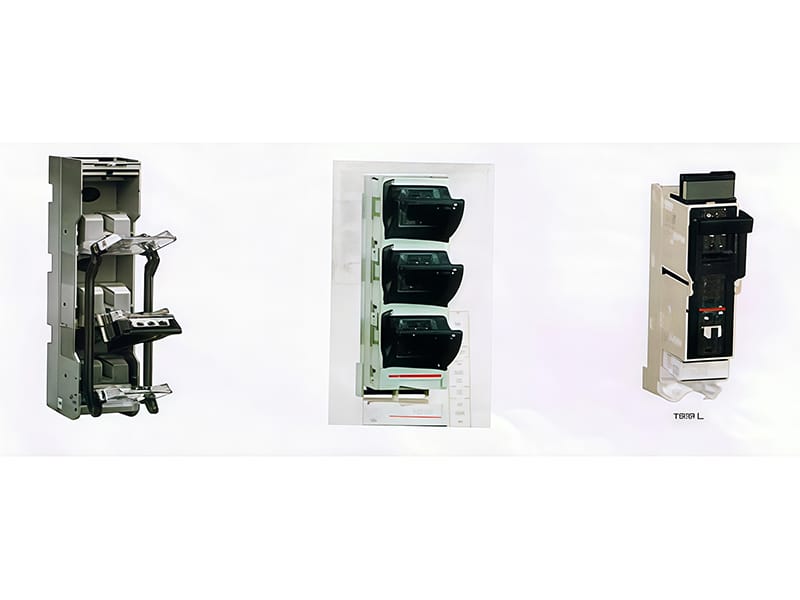

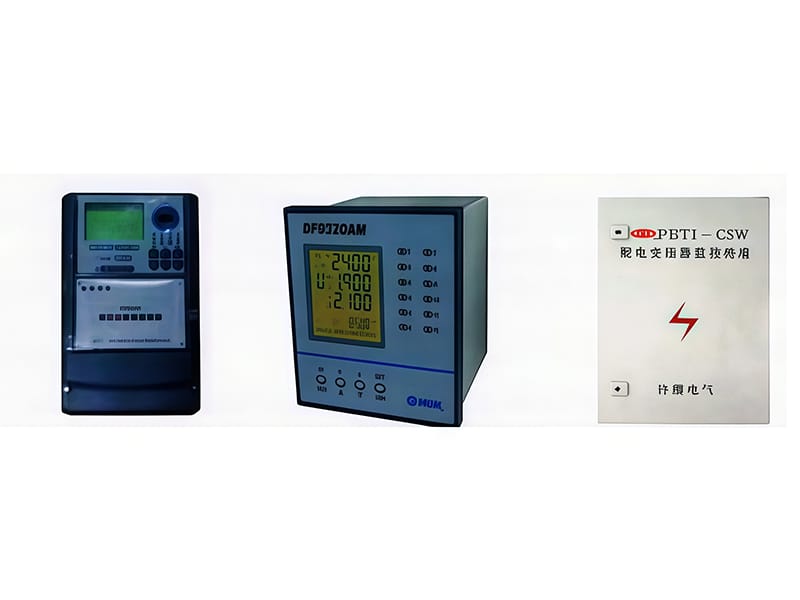

Accessories

Application Environment

The around air temperature is ≤ +40℃, and its average temperature is ≤ +35℃ in 24h. The lower air temperature is -30℃

Environment Humidity: The daily average for relative humidity is ≤ 95%, the monthly average is ≤ 90%

Pollution Grade: 3 grades

Altitude: ≤1000m

Install in an area without explosive and flammable medium, air that can damage the insulating material and corrode metal.

Installation site must be immobile with no violent shaking, installation inclination is no more than 5%

The voltage fluctuation is ≤ ±5% working voltage

The device isn't suitable to excessive harmonic place

Earthquake Intensity: no more than 8 grades.
